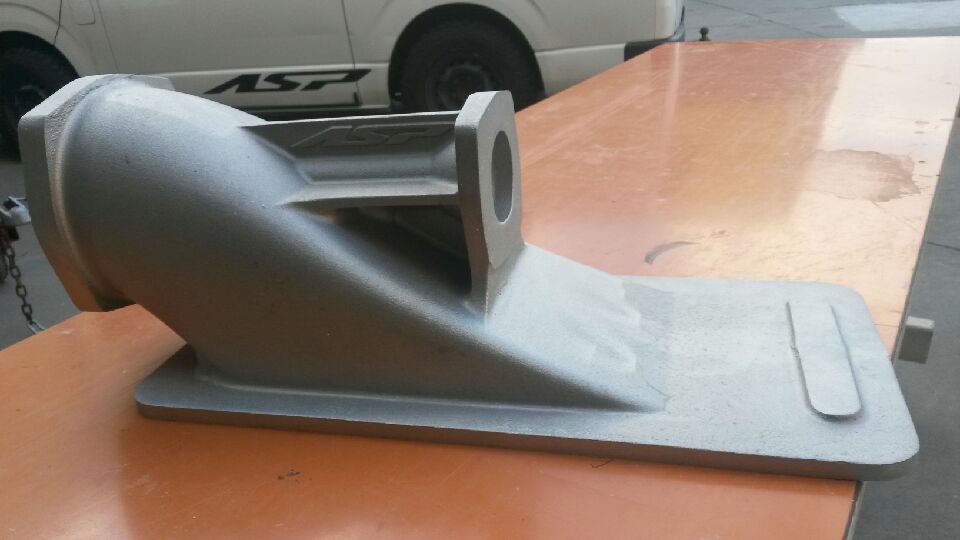

ASP cast intakes

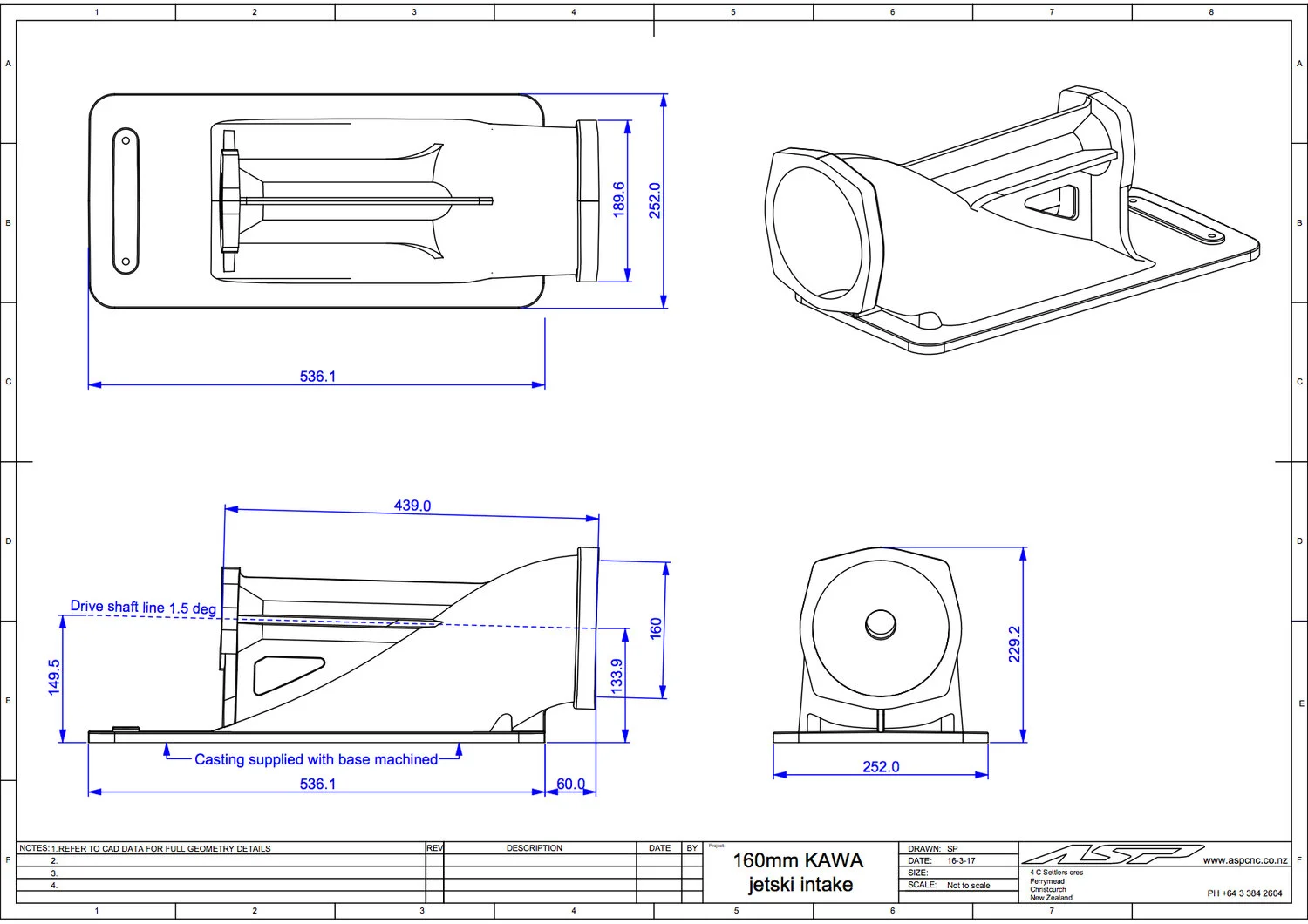

160mm diameter intake - long driveshaft

  • 439mm driveshaft tunnel length
  • Suits Kawasaki 15f driveshaft length
  • Can be fitted to most jet ski pumps
  • 160mm exit apeture, 1.5 degree driveshaft angle.
  • Machined base.
  • Weight = 7kg (intake)
  • Works with Kawasaki adaptors for 148mm, 155mm & 160mm pump





















160mm diameter intake - short driveshaft

  • 300mm driveshaft tunnel length
  • Can be fitted to most jet ski pumps
  • 160mm exit apeture, 1.5 degree driveshaft angle.
  • Machined base.
  • Weight = 6.8kg (intake)
  • Good for Seadoo 155mm - 162mm pumps
  • Works with Kawasaki adaptors for 148mm, 155mm & 160mm pumps

155mm diameter intake

  • Medium 331.8mm driveshaft tunnel length
  • Can be fitted to most jet ski pumps
  • 155mm exit apeture, 1.5 degree driveshaft angle.
  • Machined base.
  • Weight = 6.8kg (intake)
  • Good for Yamaha 155mm pumps
  • Works with Kawasaki adaptors for 148mm & 155mm pumps
